Tube Strobe Light (T139E)

Details
Written by: Newton C. Braga

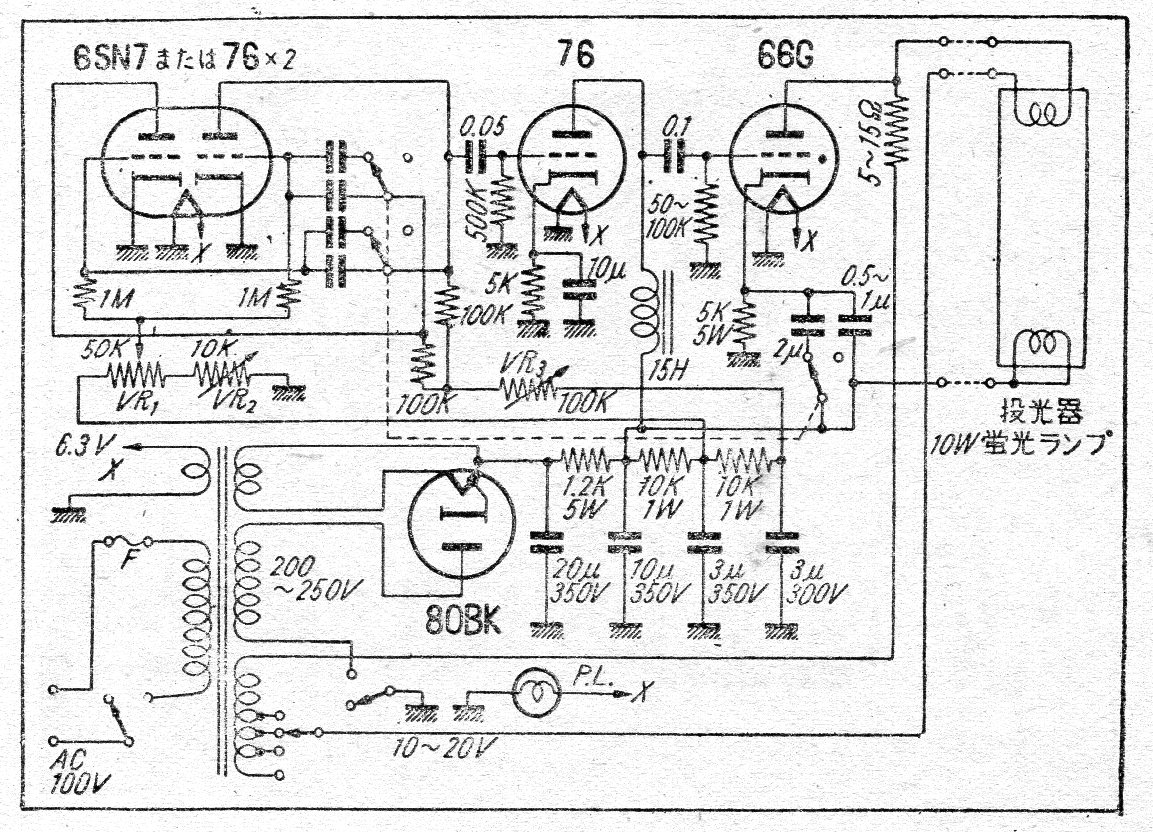

    This interesting circuit of the 50s uses a fluorescent lamp to obtain a stroboscope useful for the rotation of motors. The circuit uses a power valve to control the 10W fluorescent lamp.
