Medium Wave Receiver (T142E)

Details
Written by: Newton C. Braga

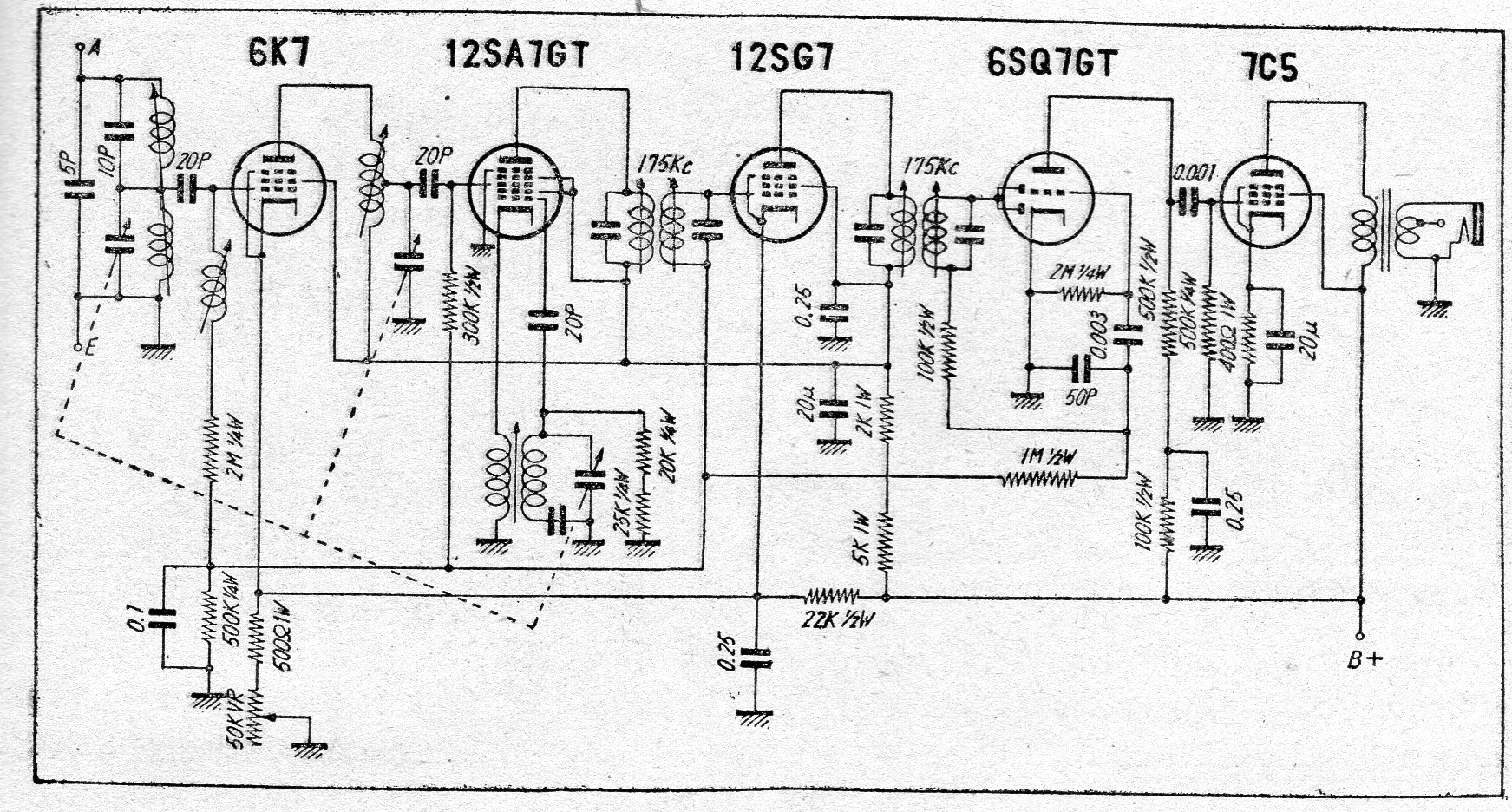

    We found this tube receiver in a 1950s Japanese publication. The circuit uses 5 tubes and has an RF amplifier stage for greater sensitivity. The power supply is not shown on the circuit.
