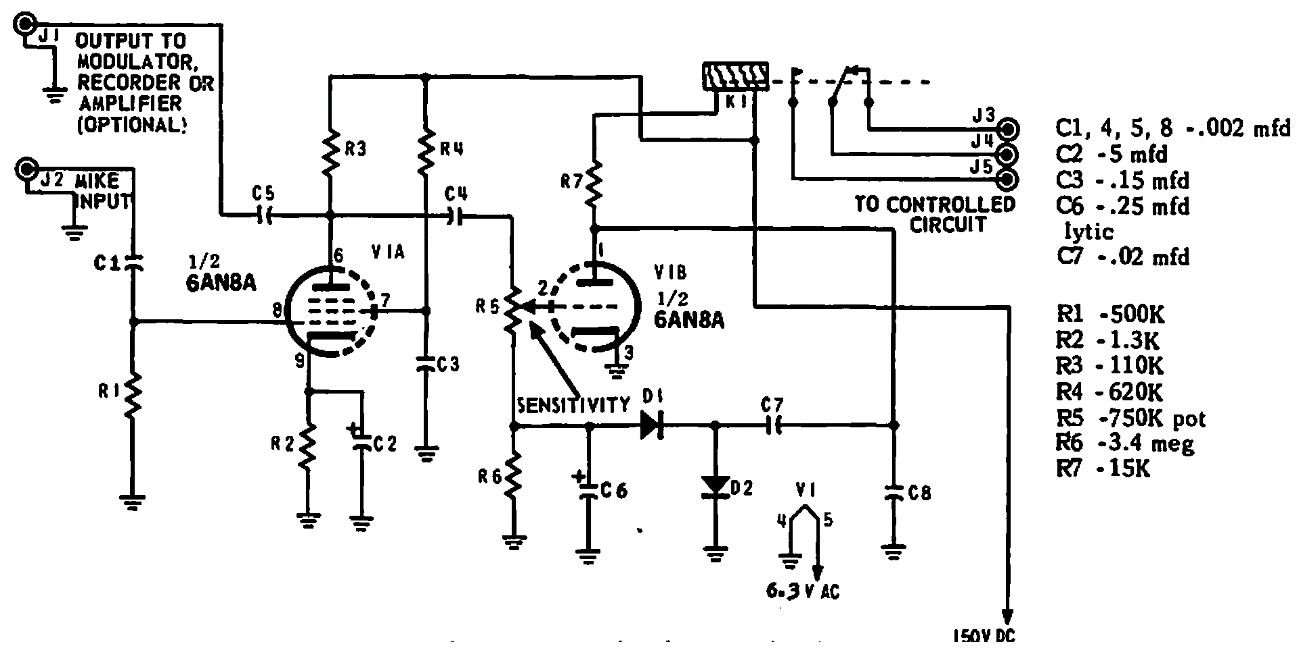

Voice Controlled Relay (T287E)

Details
Written by: Newton C. Braga



     This circuit was found in an ancient American documentation. The power supply is not given, but we have the voltages used. The relay is sensitive type for high voltage.
