Q5 is the same transistor as all others in the bridge, and it is chosen according to the current drained by the motor.

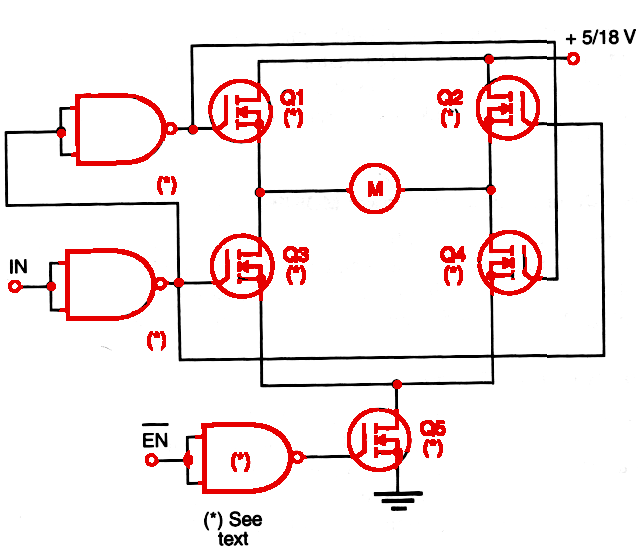

Figure 1 Full H-bridge with enable input.
H-bridge Using Power MOSFETs with Enable (MEC125E)
- Details
- Written by: Newton C. Braga
Q5 is the same transistor as all others in the bridge, and it is chosen according to the current drained by the motor.
