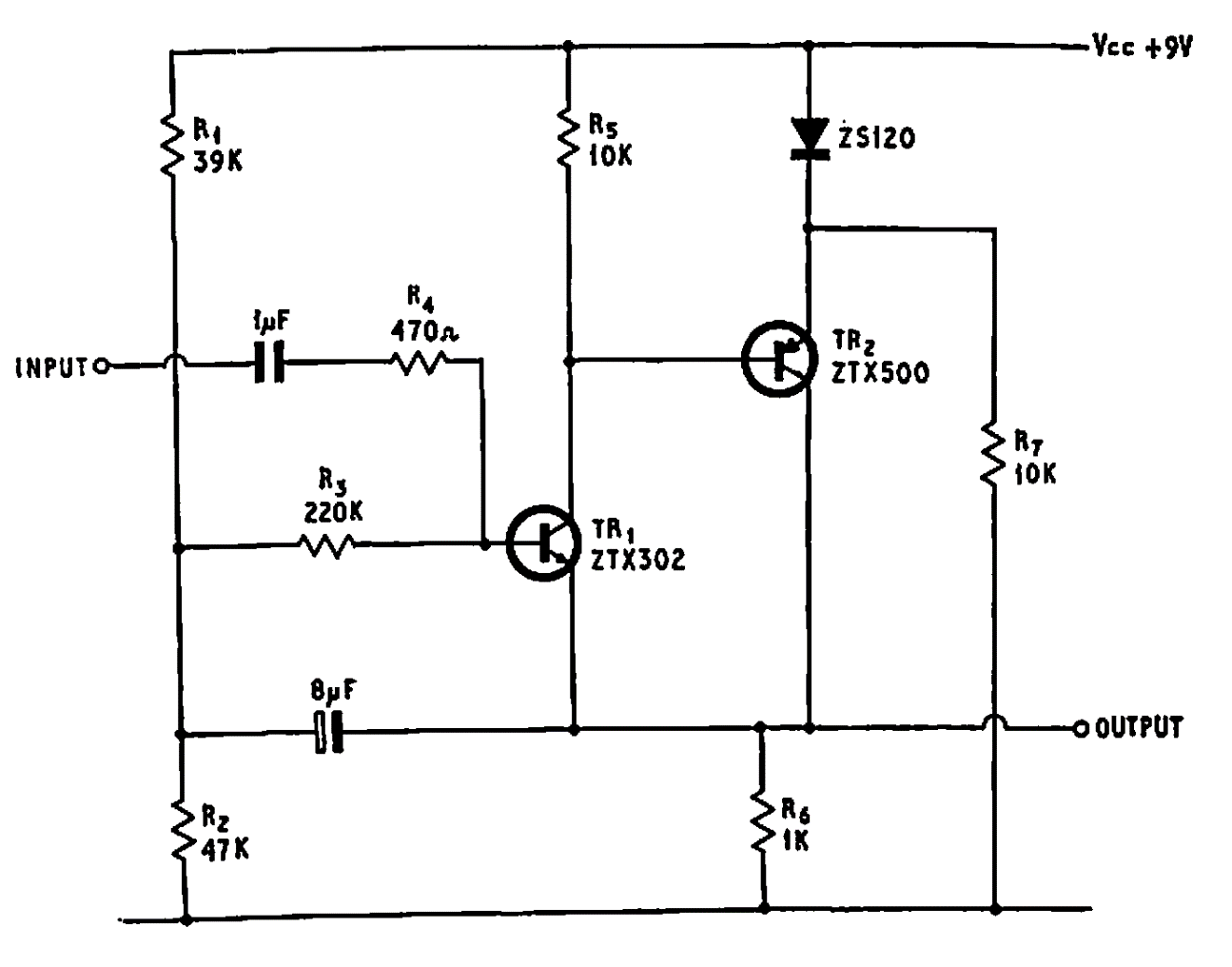

Unit Gain Stage (CB6157E)

This high impedance step suggested by an English publication can operate up to 1 MHz with 1 V rms output. Input impedance is 1 M ohm.
