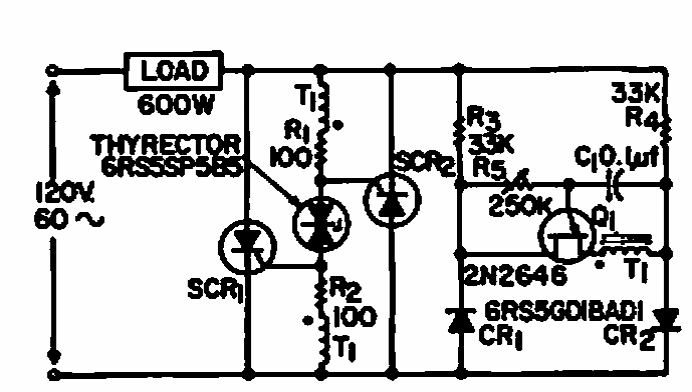

This full-wave dimmer with SCRs was found in General Electric documentation from 1965. The circuit uses a unijunction and serves only for incandescent lamps.
| Clique na imagem para ampliar |
600 W Dimmer (CB7205E)
- Details
- Written by: Newton C. Braga
