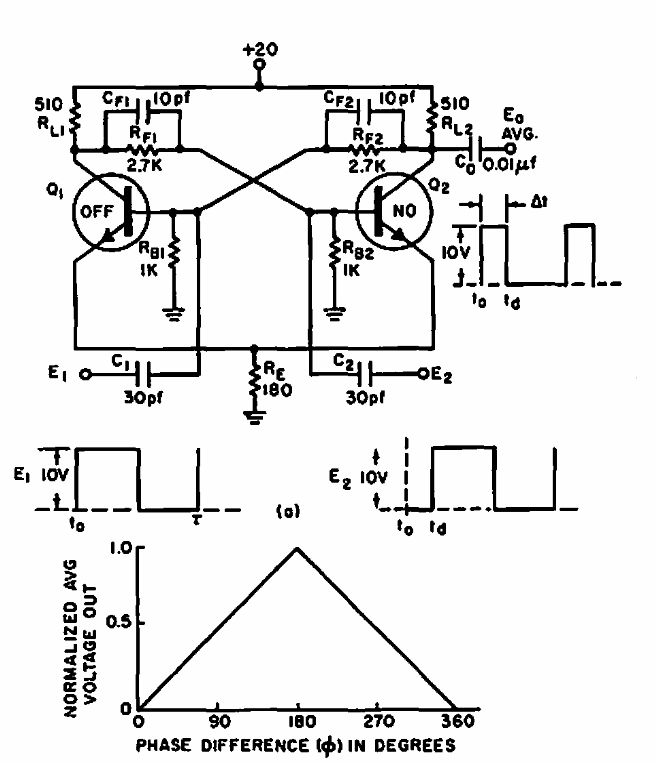

This detector was found in an old Electronic Design using transistors of the time. The circuit can be made with modern equivalent transistors. See the charts with your performance.
| Clique na imagem para ampliar |
Square Signal Phase Detector (CB6670E)
- Details
- Written by: Newton C. Braga
