Night light (CB6803E)

Details
Written by: Newton C. Braga

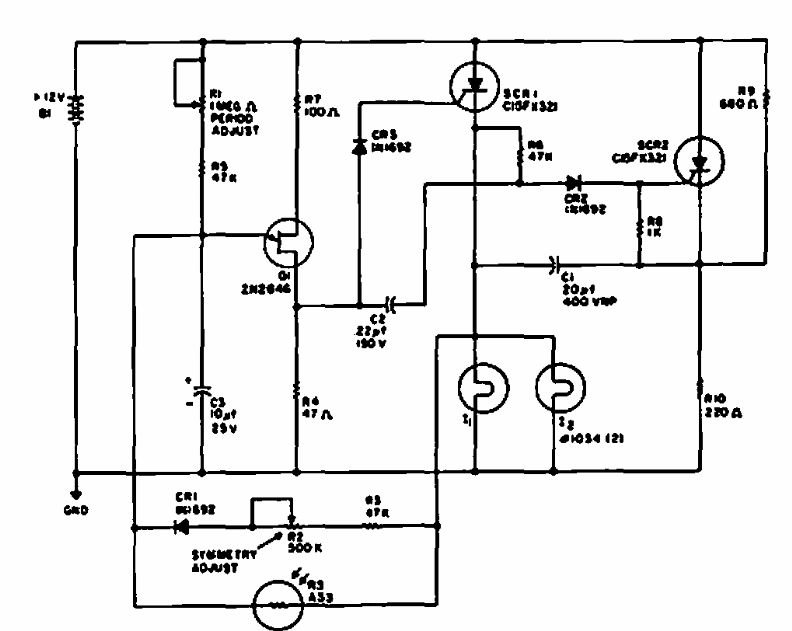

     This General Electric circuit produces pulses of light only when light stops shining on the sensor. Equivalent SCRs can be used and the trigger adjustment is done in a trimpot. The maximum load is 40W.




| Clique na imagem para ampliar |
