Hall effect field detector (CB7359E)

Details
Written by: Newton C. Braga

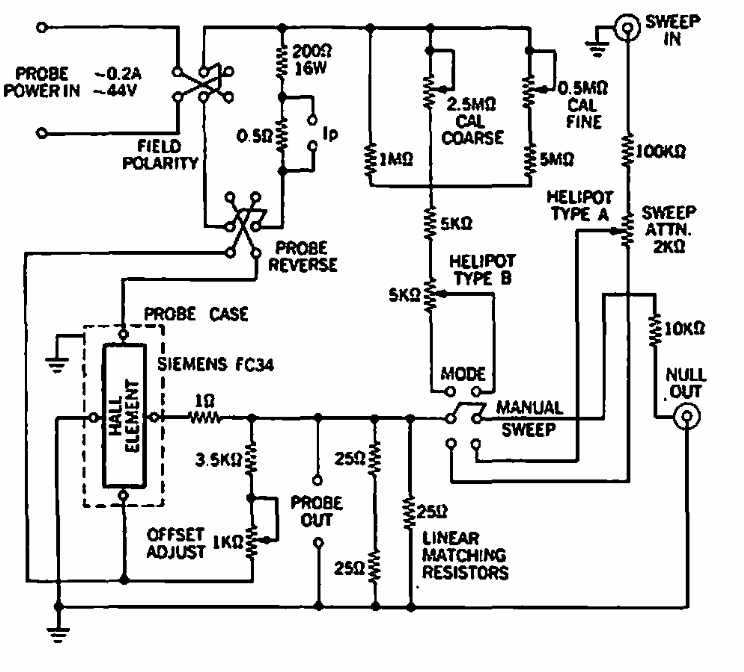

     This circuit was found in American documentation from 1966. It uses a hall effect sensor at the time to detect magnetic fields.




| Clique na imagem para ampliar |
