Non Inverter Chopper (CB6458E)

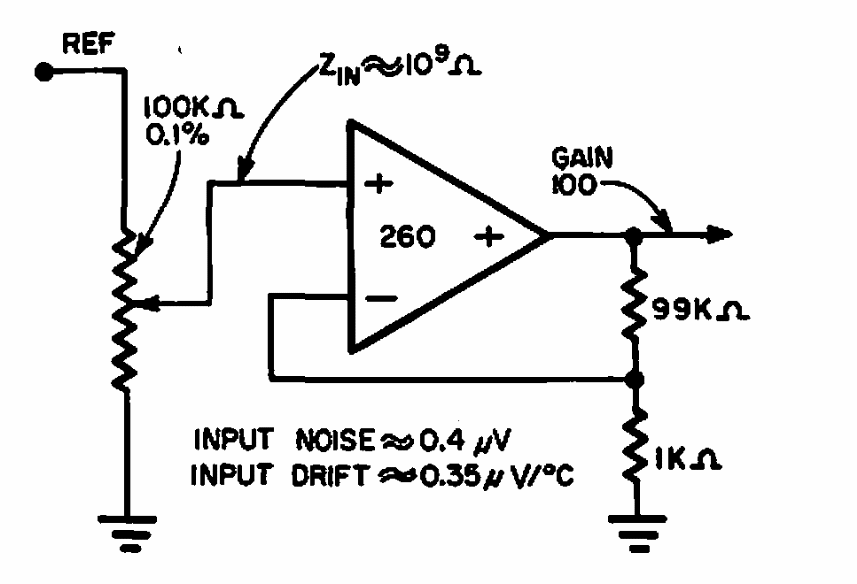

This circuit was found in an English operational documentation from 1970. The circuit can be implemented with modern operational amplifiers.
