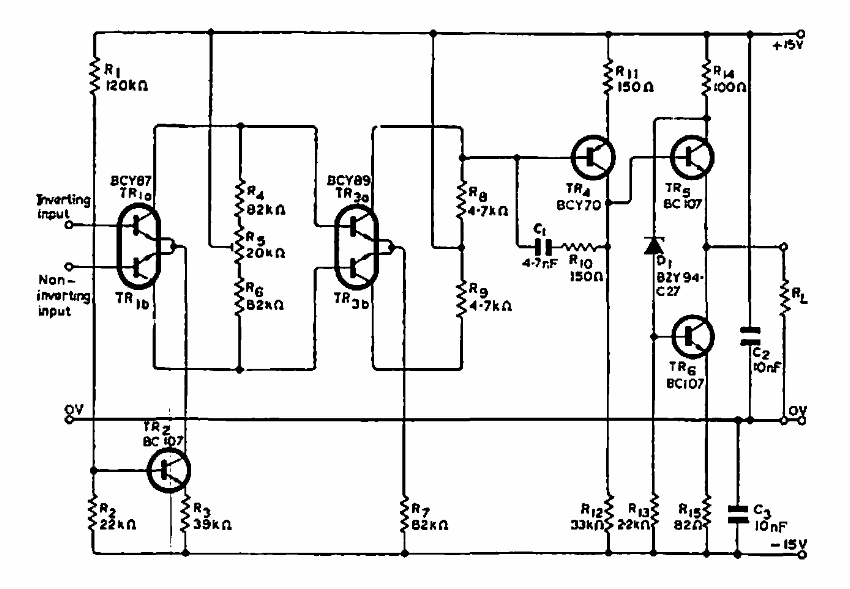

This circuit that has a response from 10 Hz to 700 kHz was found in Philips documentation from 1968. Dual transistors can be replaced by matched pairs.
| Clique na imagem para ampliar |
Gain 70 000 Amplifier (CB6638E)
- Details
- Written by: Newton C. Braga
