Found in a 1965 Motorola documentation, this circuit uses a neon lamp as a trigger element. The SCR admits equivalents and the lamp must be incandescent.
| Clique na imagem para ampliar |

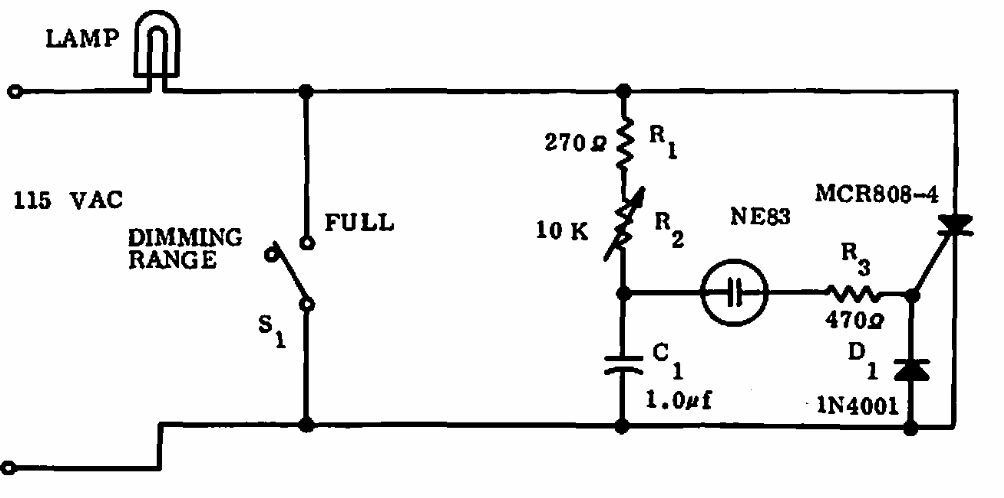

Half wave dimmer (CB7204E)
- Details
- Written by: Newton C. Braga
