Bootstraped Source Follower (CB6156E)

Details
Written by: Newton C. Braga

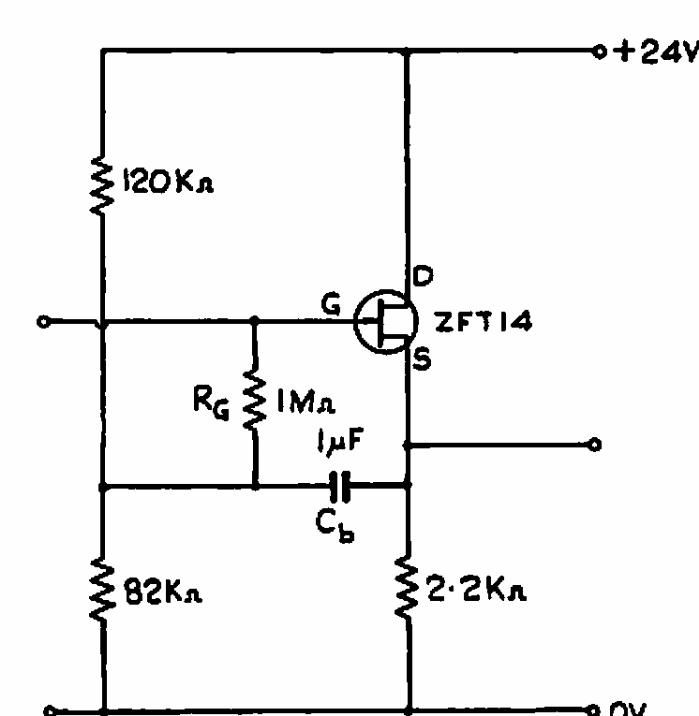

     This configuration was found in an English magazine from 1965. It is valid for any junction FET. The input impedance is 5.5 M ohm higher than conventional stages.
