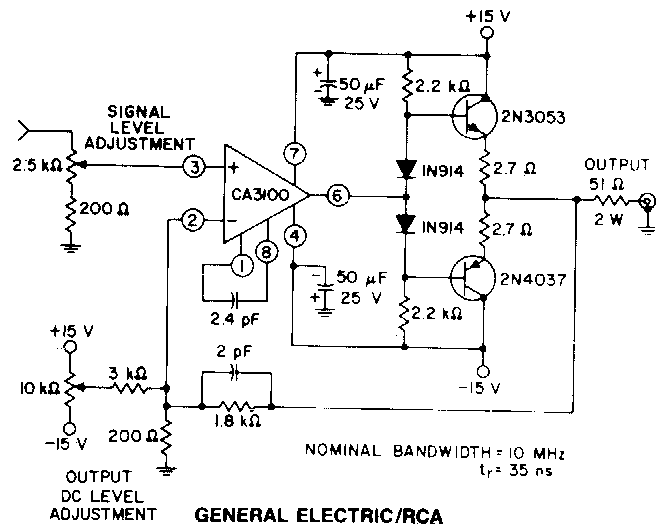

This circuit was suggested by General Electric / RCA in a 1980s documentation. The components are of the time and the circuit must be powered by symmetrical source.
| Clique na imagem para ampliar |
50 ohm line driver 2 (CB6222E)
- Details
- Written by: Newton C. Braga
