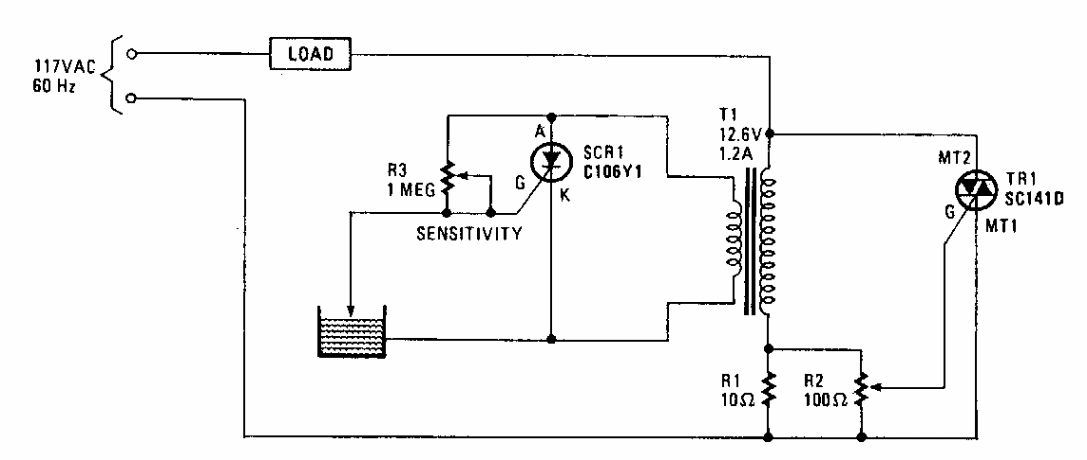

Water Level Monitor and Control (CB6271E)

This circuit was found in an 80s Hands On Electronics. It senses the water level in a reservoir by driving a pump when needed.

| Clique na imagem para ampliar |
