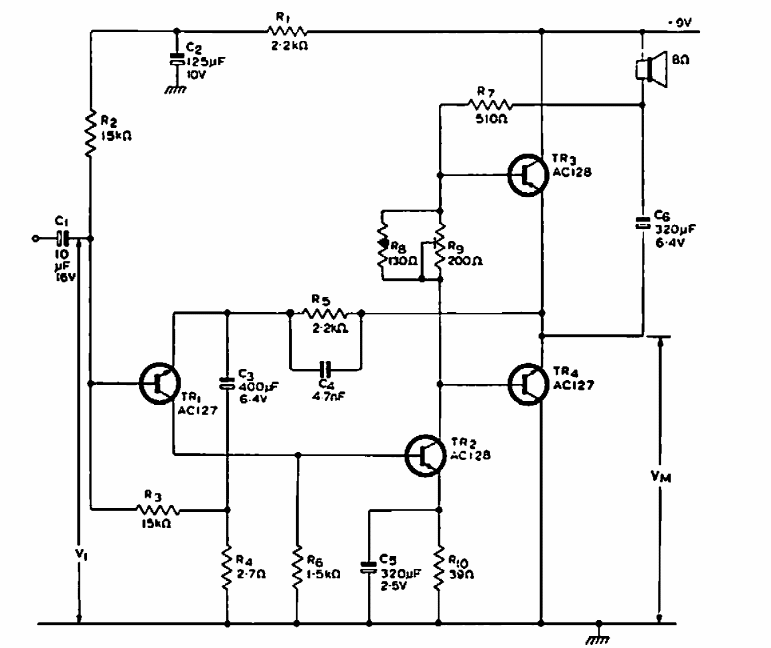

1 W Transistor Amplifier (CB6296E)

Details
Written by: Newton C. Braga



     This Mullard circuit was found in a 1969 documentation. It uses complementary transistors on the output and does not need a transformer. The bandwidth goes from 100 to 20 000 Hz.
