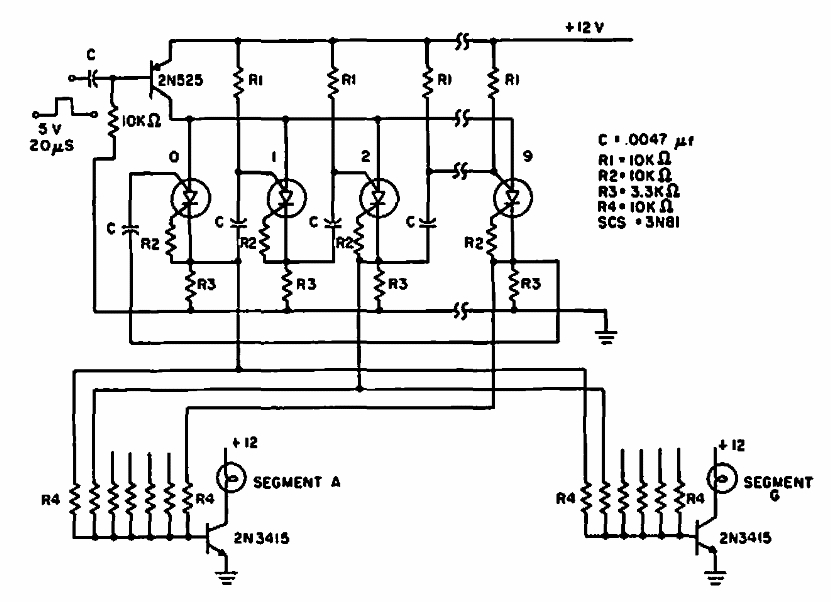

This circuit was obtained from a 1966 General Electric documentation. It can serve as a basis for demonstrations of how to decode segments of a display using discrete components.
| Clique na imagem para ampliar |
Segment decoder (CB6601E)
- Details
- Written by: Newton C. Braga
