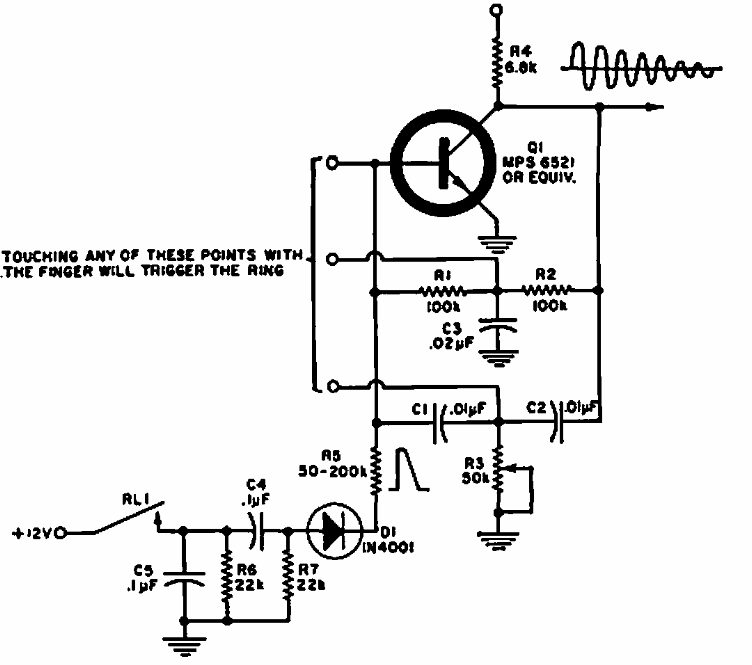

This percussion circuit was found in an Electronics World of 1968. The transistor may be general purpose and the power supplied at 12 V. The signal must be applied to an amplifier.
| Clique na imagem para ampliar |
Bongo (CB6710E)
- Details
- Written by: Newton C. Braga
