Barometer (CB7068E)

Details
Written by: Newton C. Braga

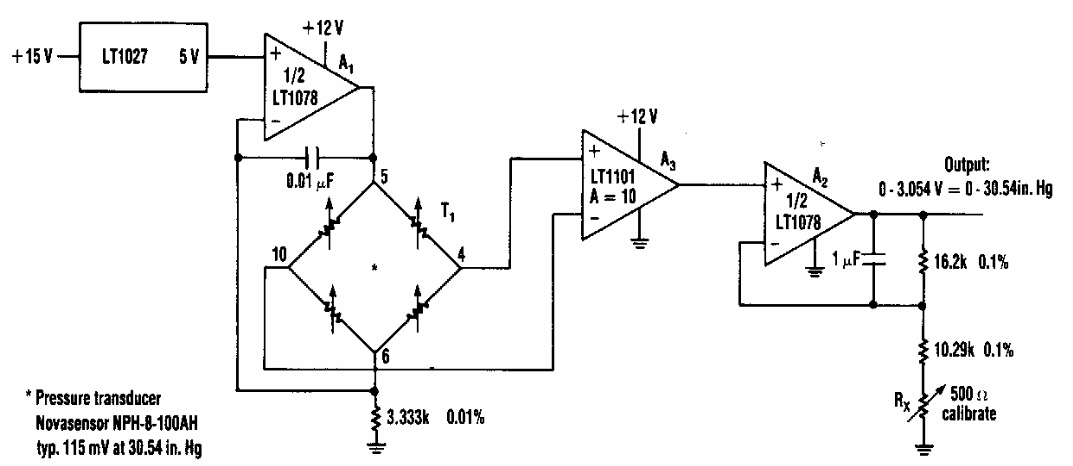

     Found in an Electronic Design from the 90s, this circuit makes use of contemporary components, including the pressure sensor. Modern equivalent components can be used in a new project.




| Clique na imagem para ampliar |
