Sound controlled lamp (CB7198E)

Details
Written by: Newton C. Braga

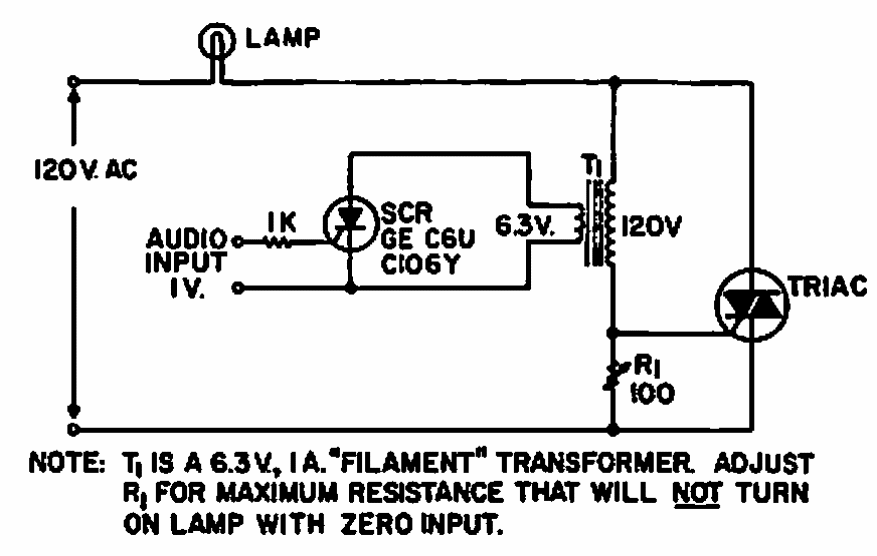

     Found in a 1966 General Electric documentation, this circuit controls an incandescent lamp from an audio signal. The circuit works like a rhythmic light.
