10 V inverter for thermoelectric generators (CB7182E)

Details
Written by: Newton C. Braga

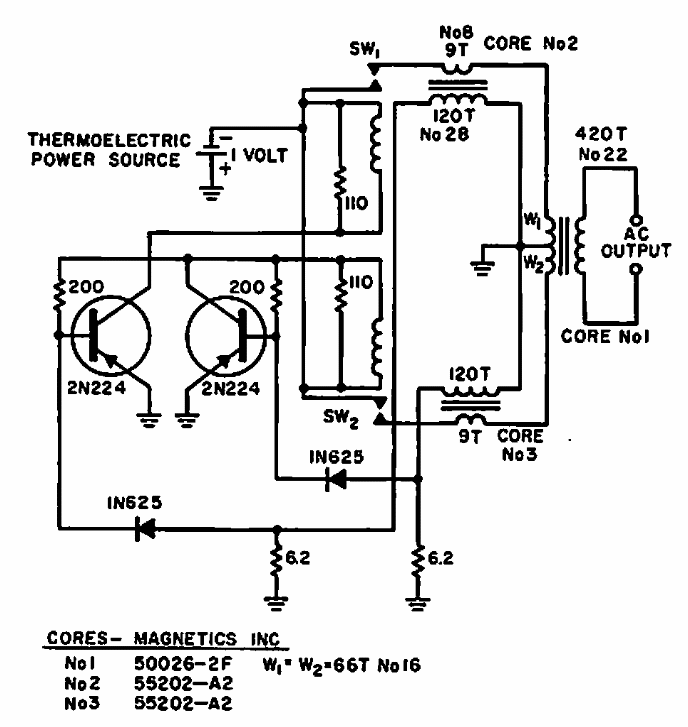

     This circuit was obtained in a 1964 Electronic Design. The circuit uses components from that time, intended to convert 1 V of a thermoelectric generator into 10 VAC.




| Clique na imagem para ampliar |
