Modulated infrared emitter (CB7251E)

Details
Written by: Newton C. Braga

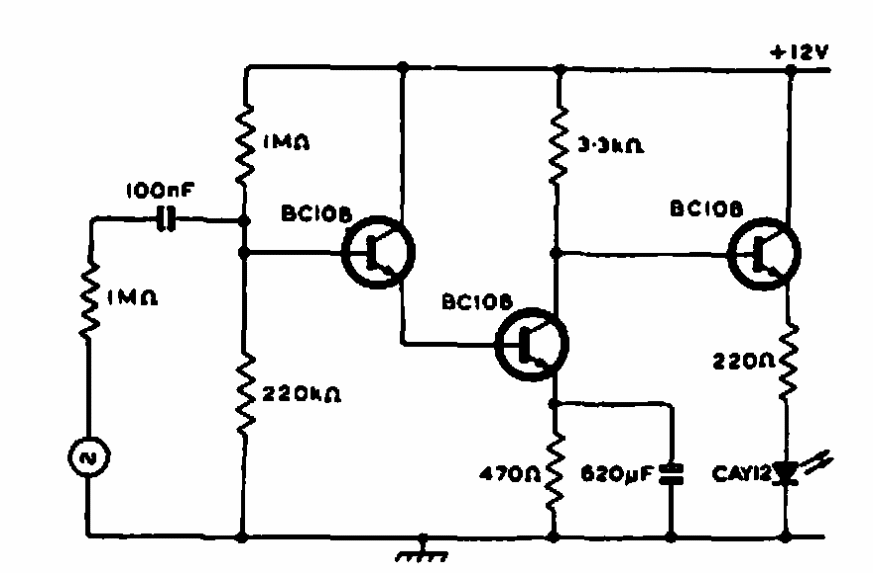

    Found in a 1968 Mullard manual, this circuit can function as an infrared audio link. The transistors can be the BC548.
