tape player amplifier (CB7301E)

Details
Written by: Newton C. Braga

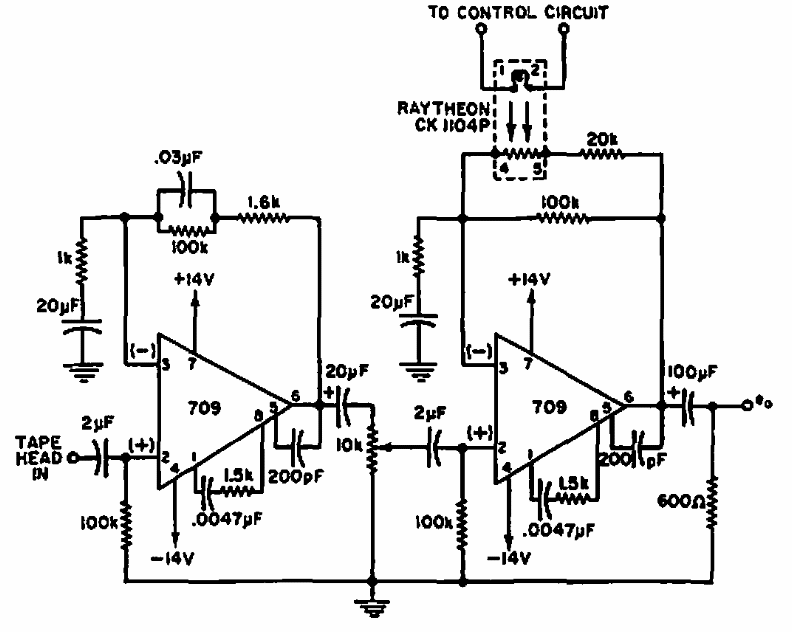

    Found in a 1968 Electronics World, this circuit uses operational amplifiers from that time.




| Clique na imagem para ampliar |
