Playback amplifier (CB7335E)

Details
Written by: Newton C. Braga

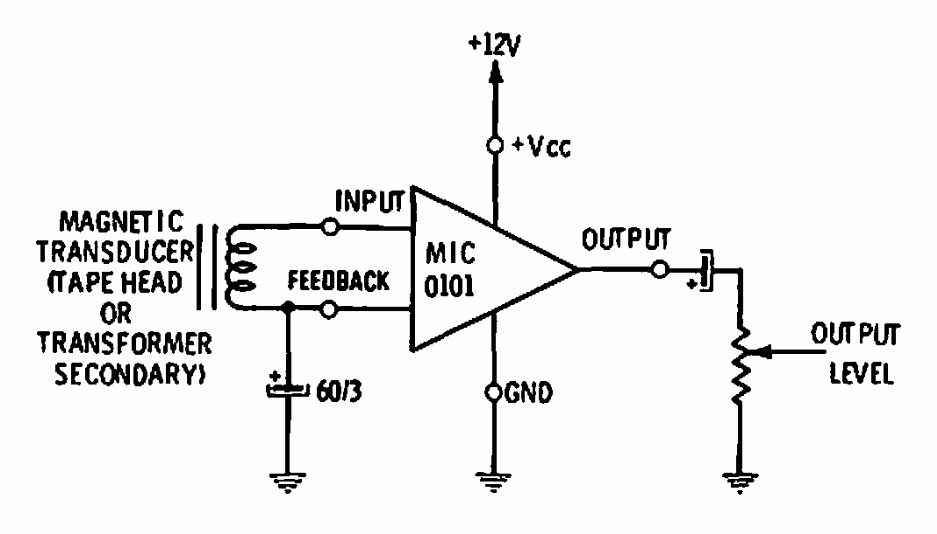

    Found in Mallory documentation from 1968 this circuit uses an integrated circuit from that time. The circuit has a flat response from 10 Hz to 700 kHz.
