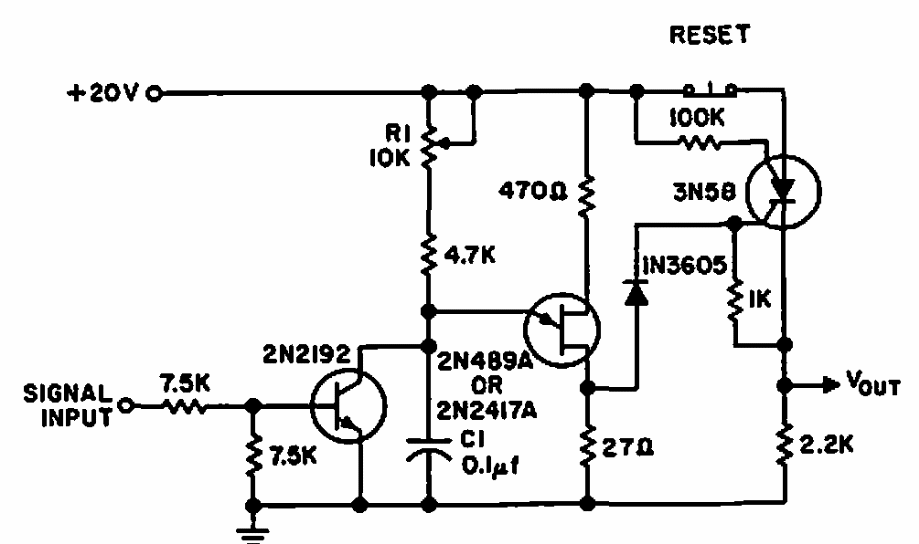

Signal Drop Detector (CB6117E)

Details
Written by: Newton C. Braga



     This circuit was found in an 80's General Electric documentation. The circuit uses uncommon components today like the PUT. Unijunction admits equivalent.
