Assisted Ignition (CB6383E)

Details
Written by: Newton C. Braga

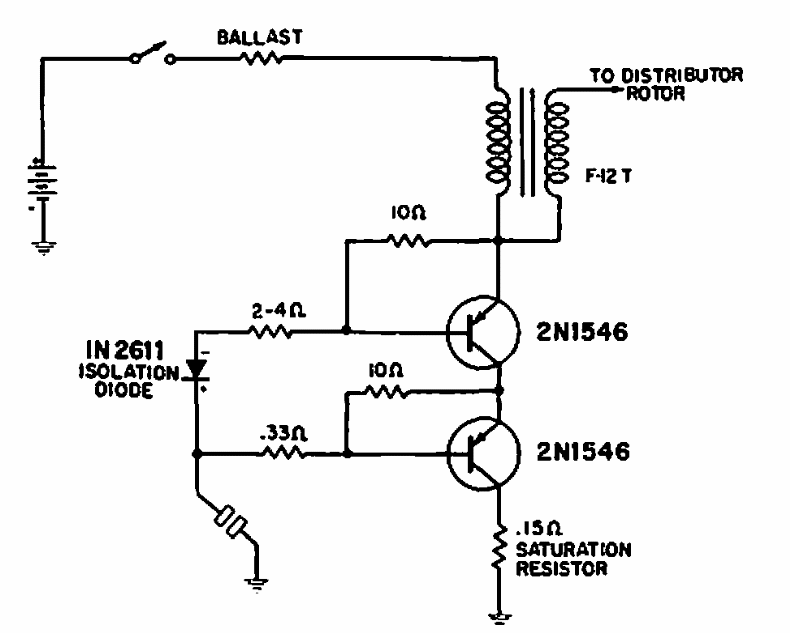

    This two-transistor circuit was found in a 1966 US documentation. The power transistors are of the time. The system is intended for cars with contact breaker.
