Piezoelectric Alarm (CB6425E)

Details
Written by: Newton C. Braga

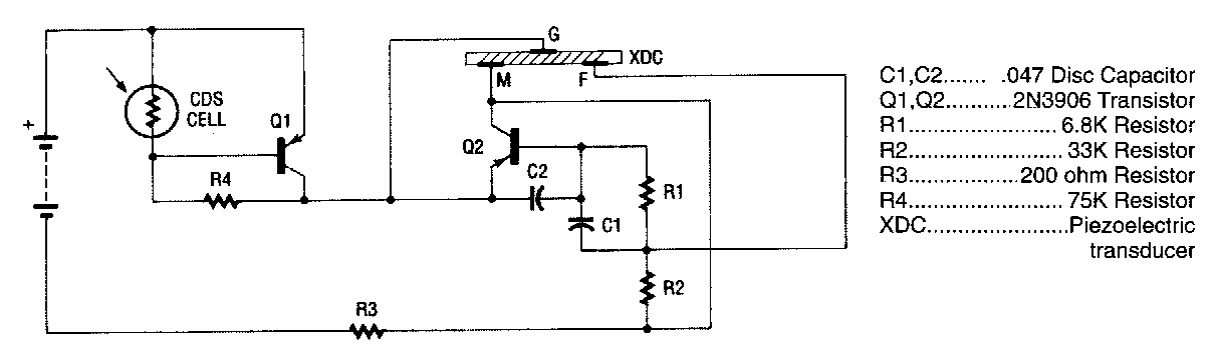

     We found this circuit in a 1991 Hobbyst Electronics. The circuit makes use of an unusual transducer today. It is a piezoelectric buzzer that can eventually be replaced by an equivalent configuration.




| Clique na imagem para ampliar |
