CMOS Driver RS232 (CB6518E)

Details
Written by: Newton C. Braga

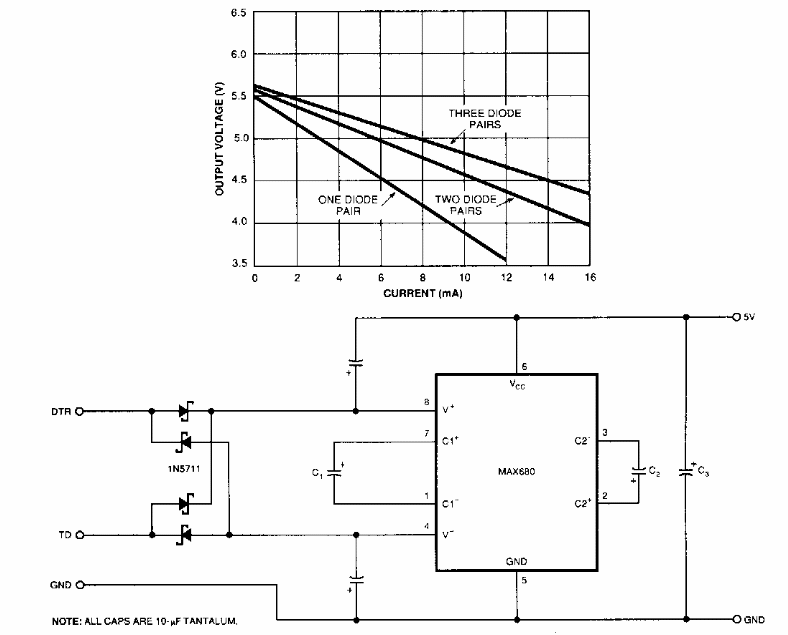

    We found this circuit in an 80's EDN. The circuit makes use of a MAX680, being given a table with its operating characteristics.
