Even Number Divider (CB6532E)

Details
Written by: Newton C. Braga

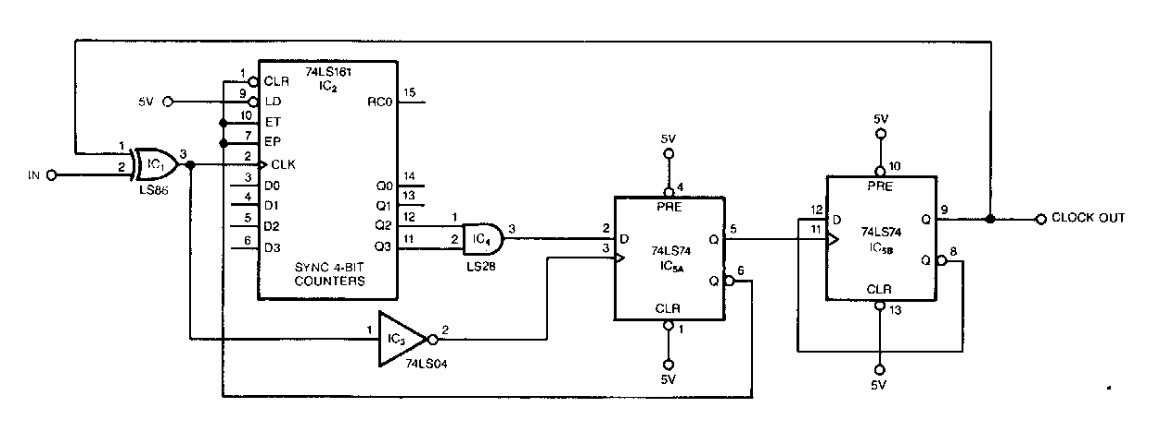

     This circuit of an EDN divides the input pulse frequency by even values. The circuit is TTL and can be used as a shield for microcontrollers.
