90 dB CMRR Amplifier (CB6637E)

Details
Written by: Newton C. Braga

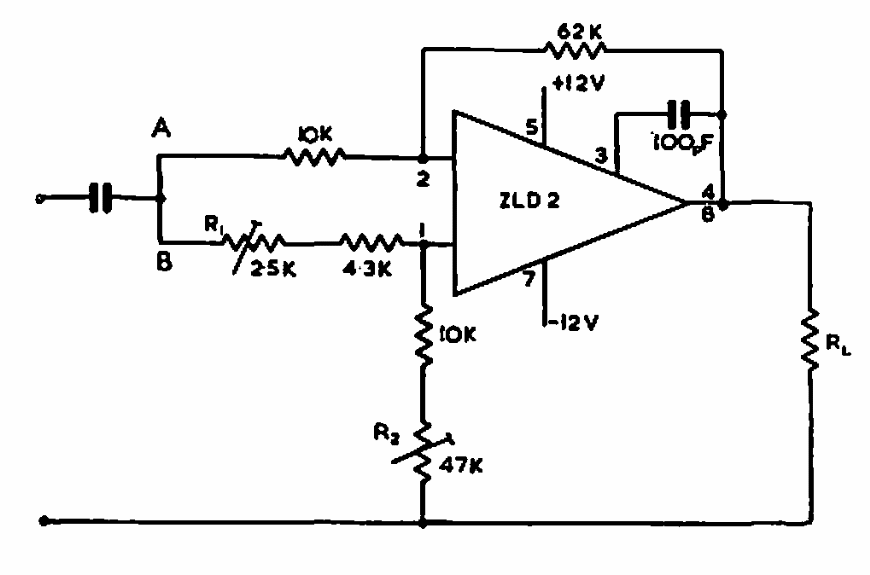

    This circuit was found in Raytheon's 1967 documentation. The circuit uses an operating of the era, but the configuration can be applied to modern operational amplifiers.
