Flasher MOSFET (CB6756E)

Details
Written by: Newton C. Braga

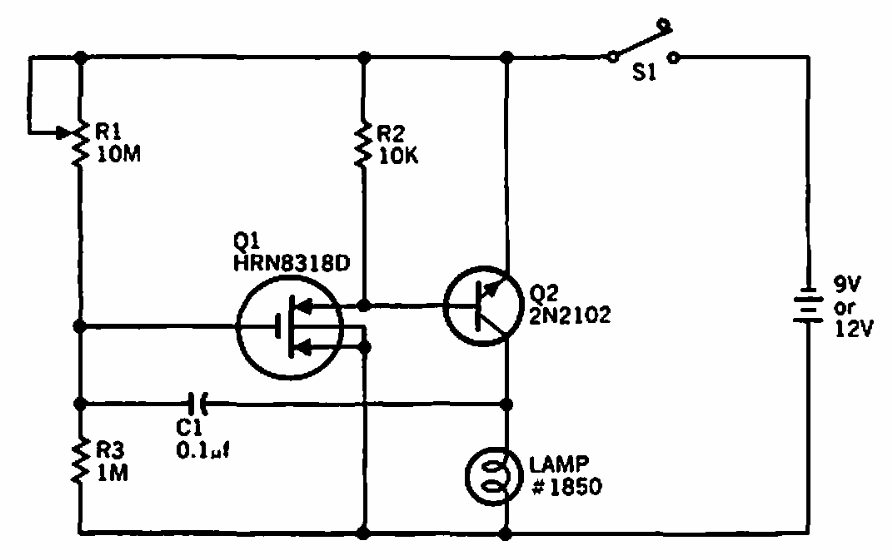

     This circuit was found in a Hughes manual of 1068 using a MOSFET of the time. The circuit can be adapted to use modern equivalent MOSFETs.
