Automatic start for LASER (CB7226E)

Details
Written by: Newton C. Braga

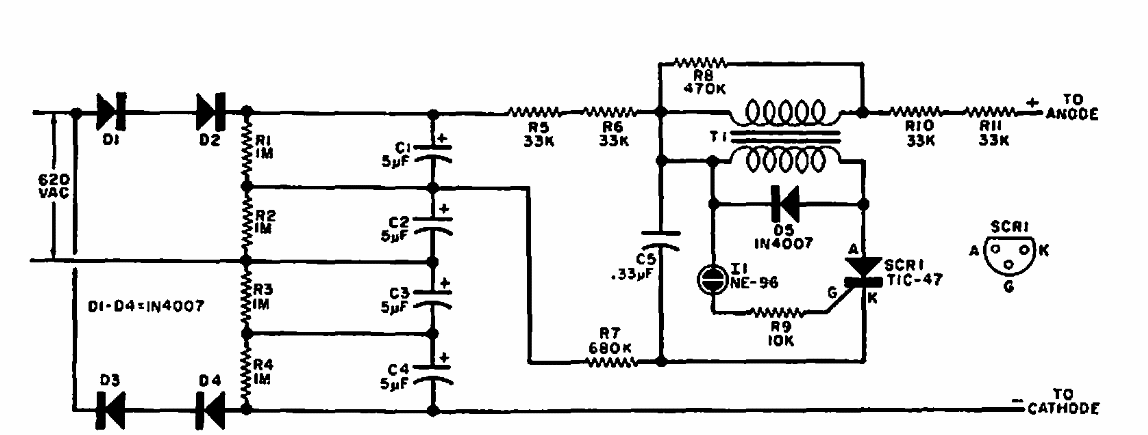

    This circuit, of a Popular Electronics of 1969 is destined to firing a gas LASER of the time. The circuit makes use of a high voltage transformer for triggering.
