50 ohm line booster (CB6221E)

Details
Written by: Newton C. Braga

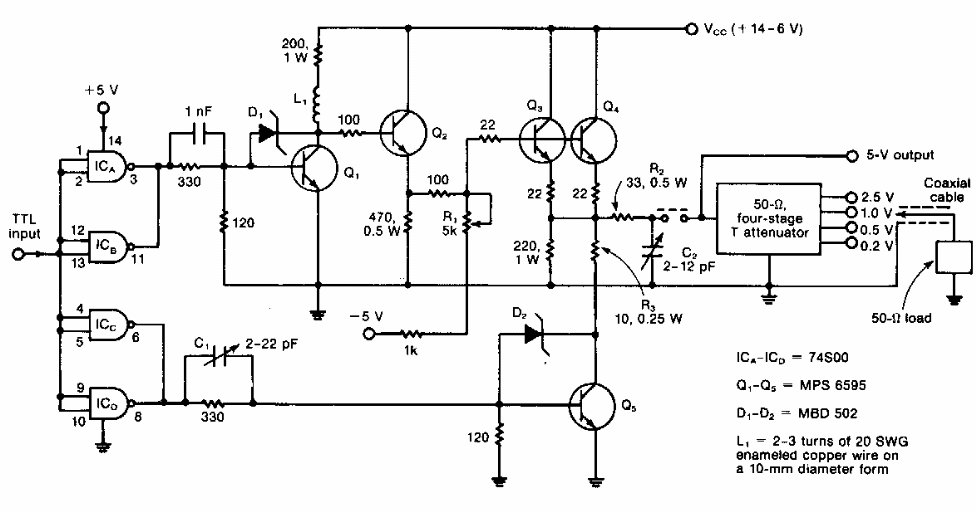

    This circuit was found in an 80's Electronic Design. It amplifies TTL fast signals for a coaxial cable. TTL is from the S (Schottky) line and transistors are types of the time.




| Clique na imagem para ampliar |
