High Speed Single Pulse (CB6351E)

Details
Written by: Newton C. Braga

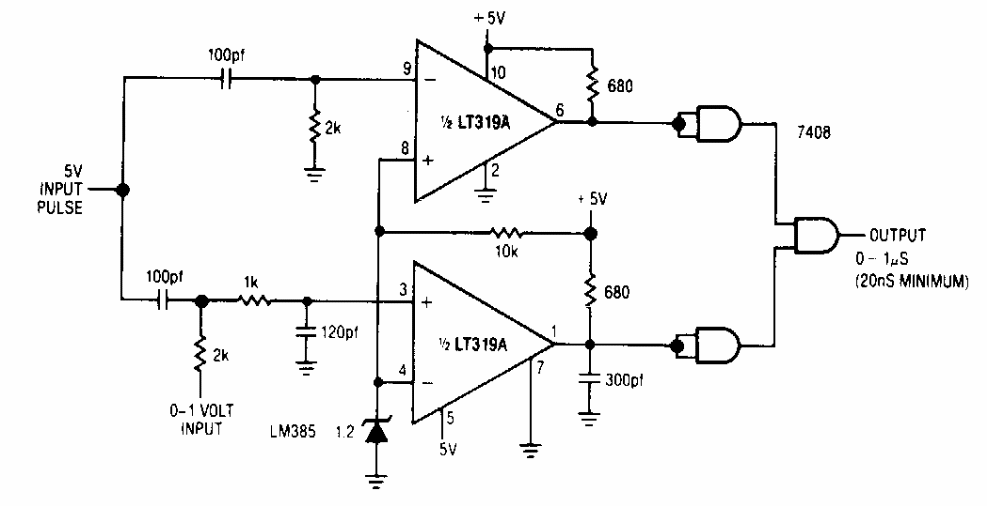

     This high-speed circuit was found in 1980s Linear Technology documentation. The circuit makes use of components of the time with TTL output and TTL input that enable their use as a shield.
