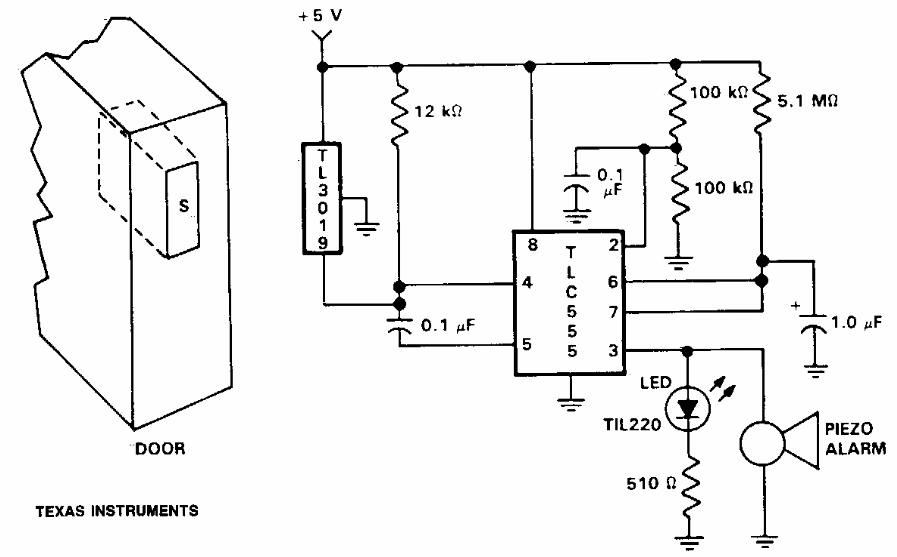

This 80's circuit, suggested in Texas Insrtruments documentation, uses a Hall effect sensor. The circuit triggers a 555 oscillator when the sensor is activated by a magnet, producing a sound on a piezo transducer.
| Clique na imagem para ampliar |
Door Open Alarm (CB6367E)
- Details
- Written by: Newton C. Braga
