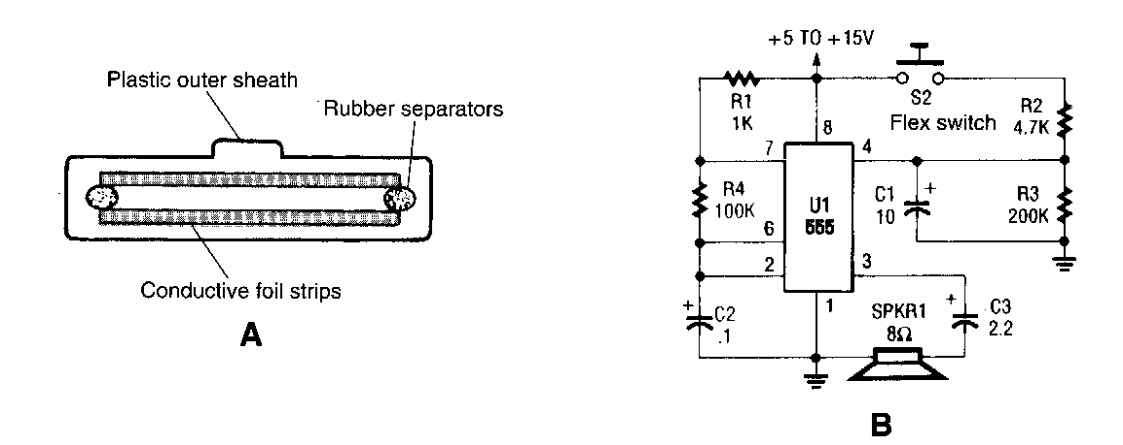

We found this circuit in a Popular Electronics of the 90s. The circuit uses a touch sensor formed by conductive tracks. The circuit must not be powered by a power supply without a transformer.
| Clique na imagem para ampliar |
Conductive Touch Switch Alarm (CB6442E)
- Details
- Written by: Newton C. Braga
