Transformerless Wideband Switch (CB6457E)

Details
Written by: Newton C. Braga

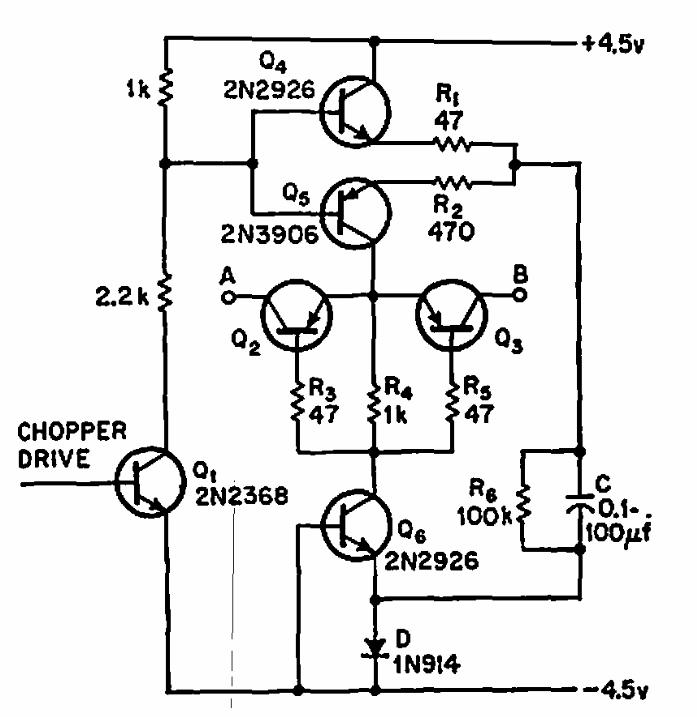

    We found this chopper circuit in a 1967 publication. The transistors are of the time, and current equivalents can be used.
