Solar alarm clock (CB6861E)

Details
Written by: Newton C. Braga

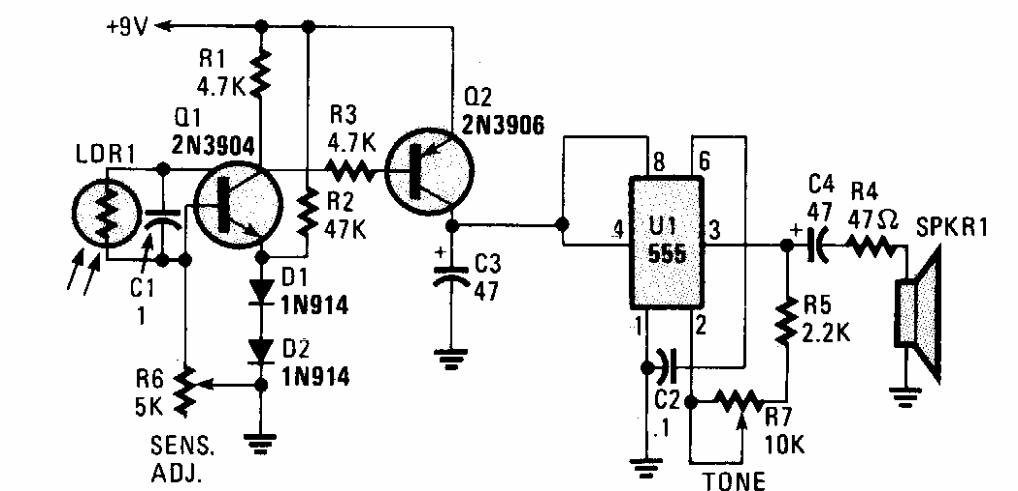

     This circuit was found in a Hands On Electronics from the 80's. The circuit emits an audible alert when dawn and the sensor receives solar illumination.




| Clique na imagem para ampliar |
