Remote light sensor (CB7045E)

Details
Written by: Newton C. Braga

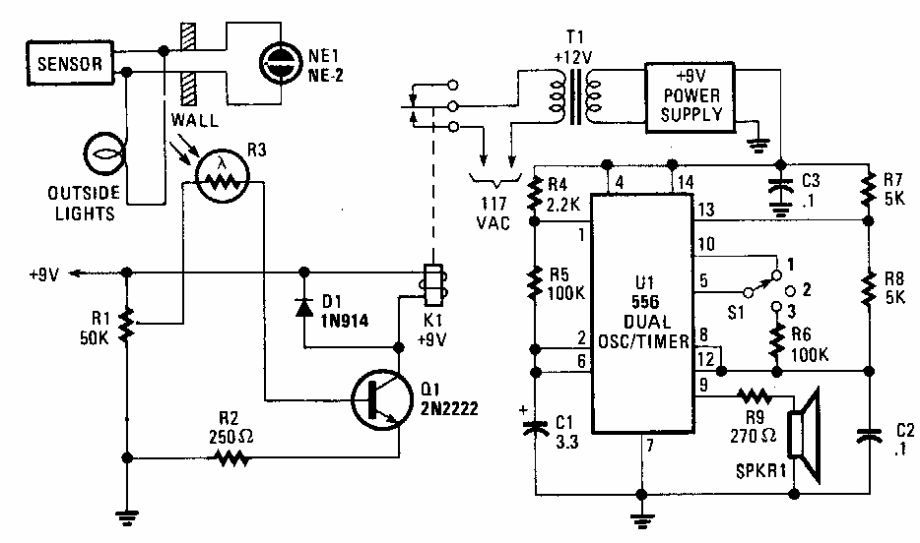

    Found in an old Popular Electronics, this circuit warns when a remote lighting system is not working. The circuit uses an LDR as a sensor and the components used are quite common today.




| Clique na imagem para ampliar |
