Fast adder 3 (CB7057E)

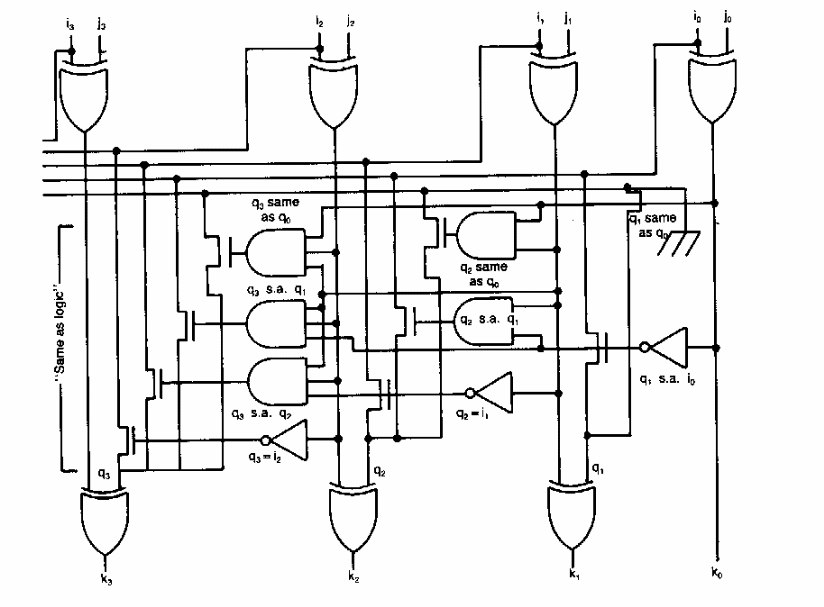

In the figure we have a third fast adder that we found in an 80's Electronic Engineering. The circuit can be implemented based on any logic family.
