Band Pass Active Filter (CB6245E)

Details
Written by: Newton C. Braga

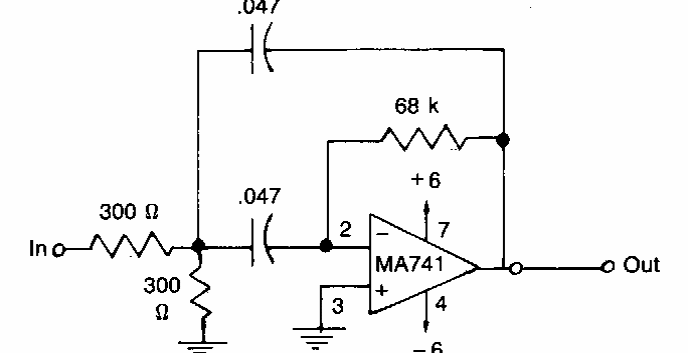

     This circuit is from an ancient American documentation. The integrated circuit is 741 and the power supply must be symmetrical. The passing band is centered at 1 kHz.






| Clique na imagem para ampliar |
