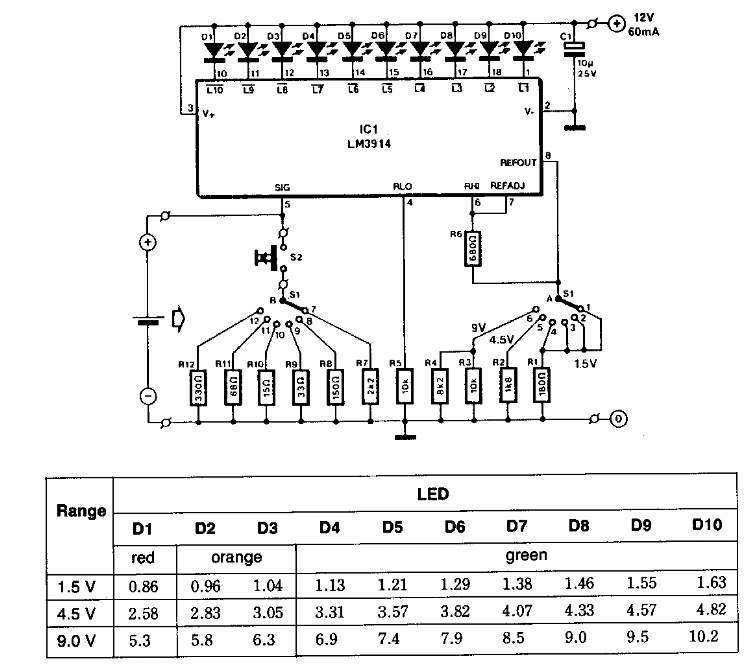

Found in a 1980s German publication, this circuit tests batteries by type. The circuit is based on a range of LEDs of different colors and is given a table with indications for various voltage ranges.
| Clique na imagem para ampliar |
Battery Tester (CB6517E)
- Details
- Written by: Newton C. Braga
