800 W Dimmer (CB6848E)

Details
Written by: Newton C. Braga

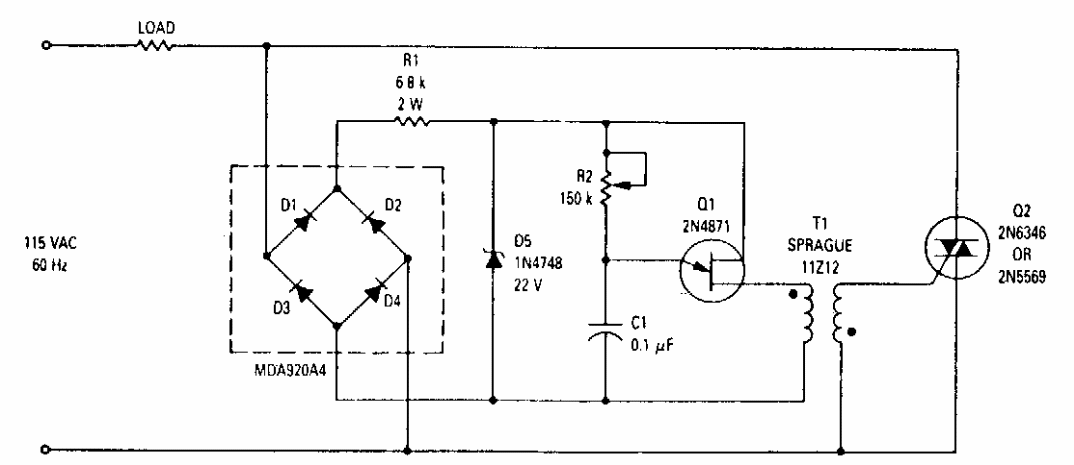

    Found elsewhere in this section, but from other sources, this circuit is from Motorola documentation. The circuit uses a triac of the time and a tripping transformer. The circuit is for 110 V network.




| Clique na imagem para ampliar |
