Modulated infrared transmitter (CB7028E)

Details
Written by: Newton C. Braga

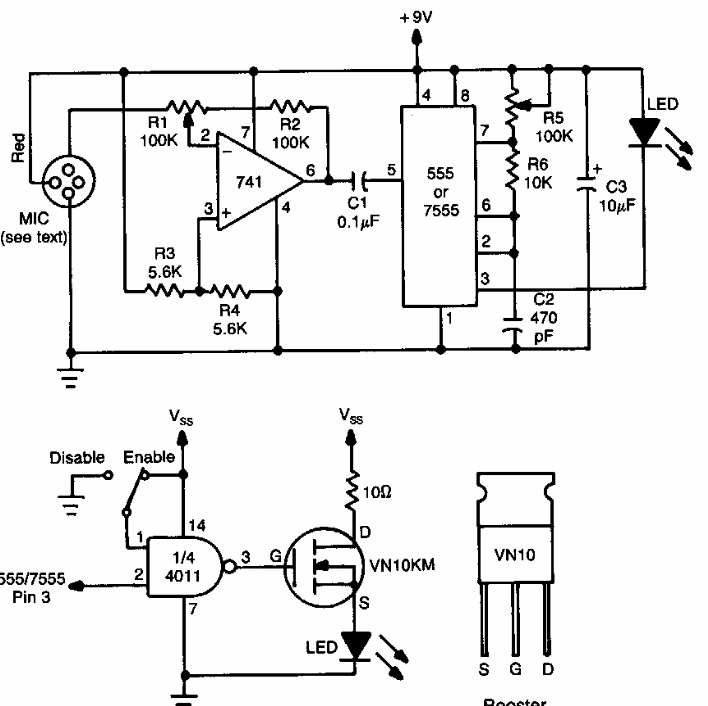

    We found these circuits in a Popular Electronics from the 90s. The circuit has a simple low power version and a higher power version with MOSFET (VMOS) of the time.




| Clique na imagem para ampliar |
