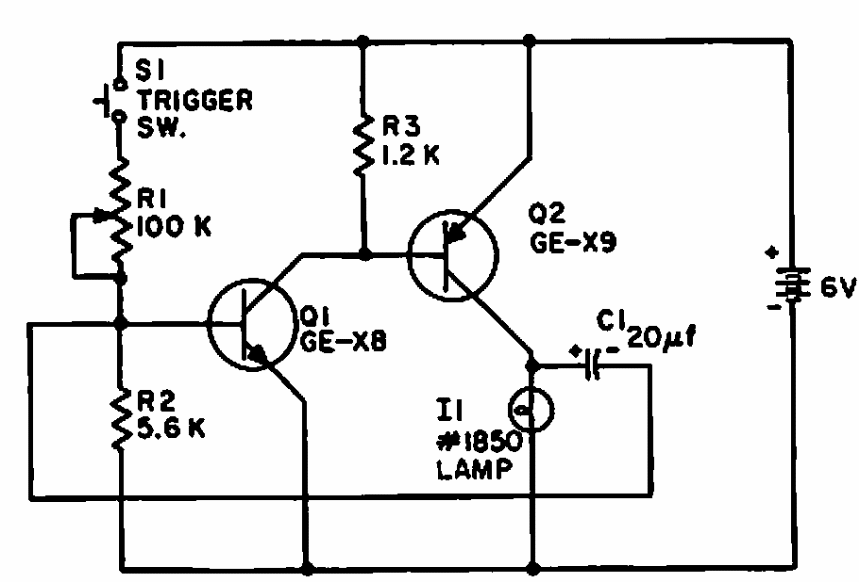

This circuit is from a 1968 General Electric manual. It produces a pulse of light when fired, serving for signaling. The transistors accept equivalents and instead of the lamp, LEDs with an appropriate resistor may be used in series.
