Logical optical driver (CB7300E)

Details
Written by: Newton C. Braga

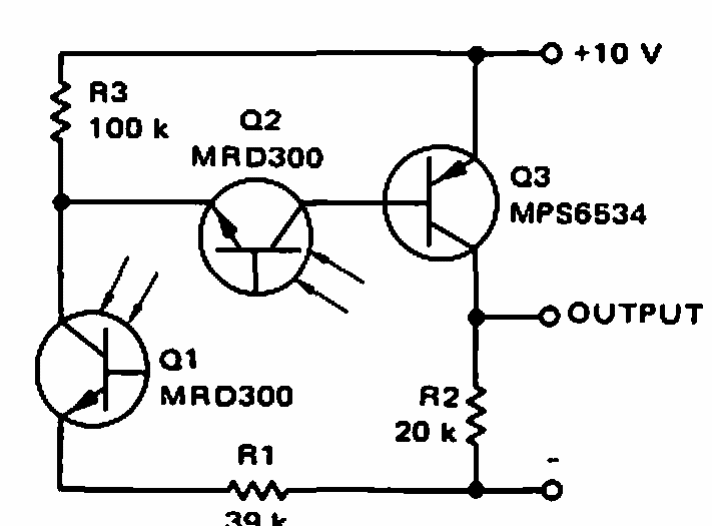

    We found this circuit in a Motorola documentation from 1968. Phototransistors are common and bipolar general purpose.




| Clique na imagem para ampliar |
