Power Failure Alarm (CB6116E)

Details
Written by: Newton C. Braga



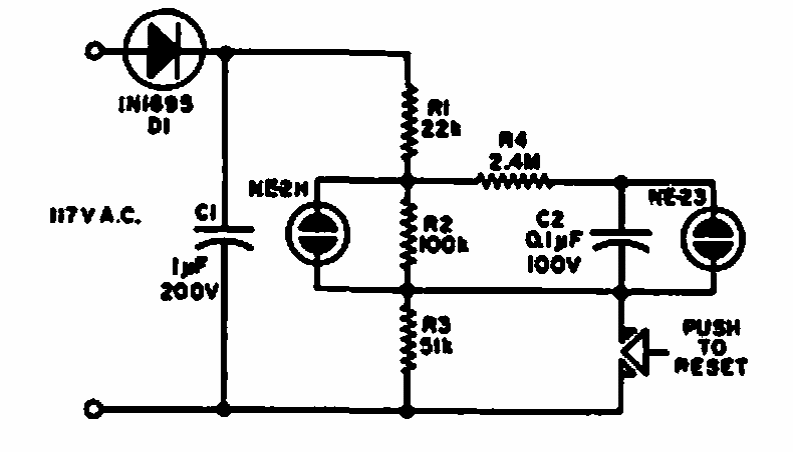

    This circuit, suggested by an Electronics World of 1969, keeps a blinking LED for a while when a power outage occurs. Time depends on capacitor C1.
