Capacitive Discharge Ignition (CB6382E)

Details
Written by: Newton C. Braga

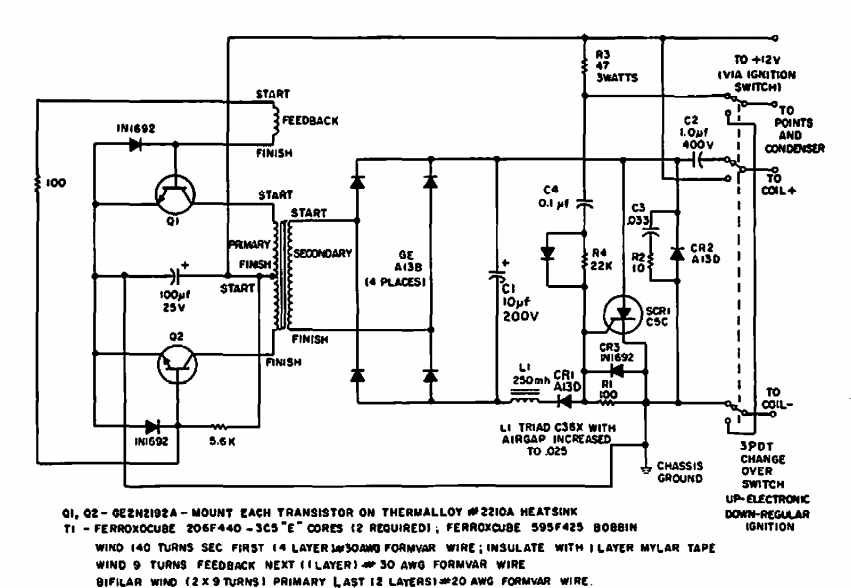

    This circuit from General Electric was found in a 1967 documentation. The SCR is of the time, as are the transistors, but equivalents can be used.
