Fast Switch (CB6456E)

Details
Written by: Newton C. Braga

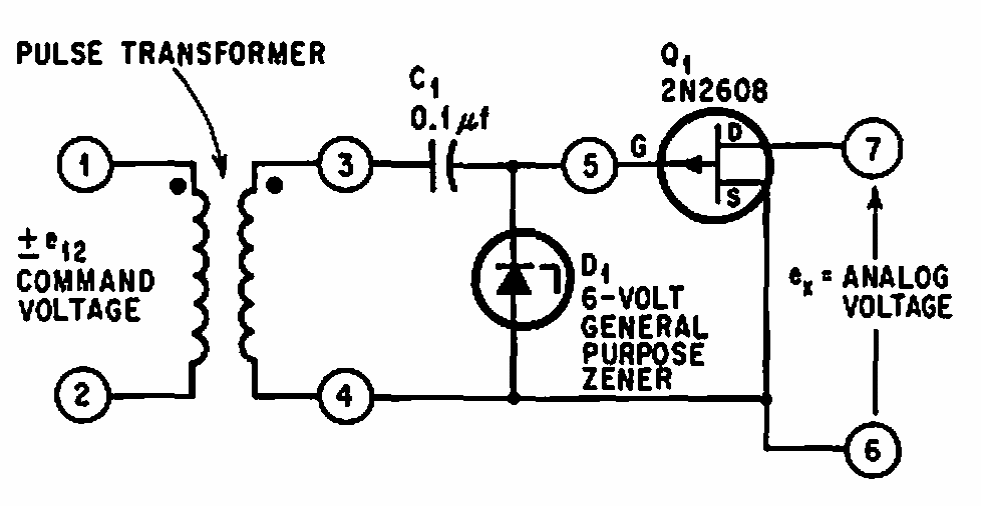

    This circuit was found in a 1967 US documentation. The FET is general purpose and the 6V zener. The circuit has a very fast switching action.
