IR remote control emitter (CB7020E)

Details
Written by: Newton C. Braga

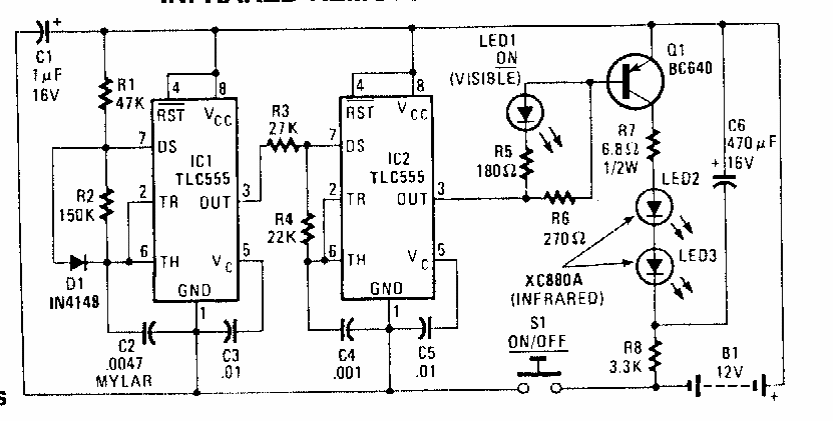

     This circuit was found in 1980's Radio Electronics. The circuit produces a 1500 Hz modulate 35 kHz. The components used are still common.
